Passenger shelter Novara ST
The bus shelter with gable roof in steel and glass construction and its slender but robust posts with slight curvature at the head make the Novara ST model one of the most popular passenger shelters with all urban planners.
Request product Request price listhot-dip galvanised steel, colour-coated, aluminium, laminated safety glass (VSG), toughened safety glass (ESG)

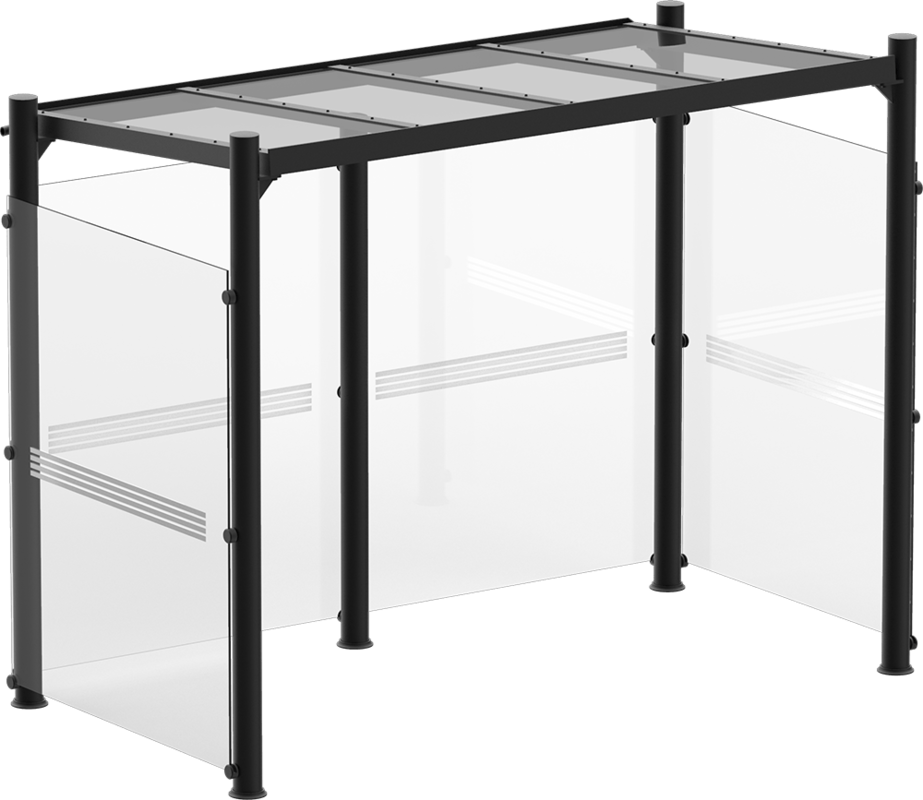

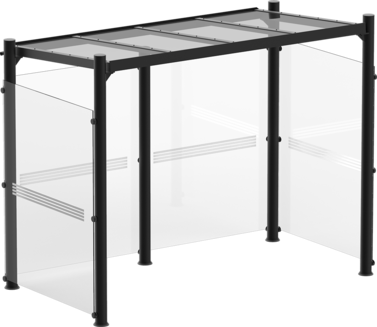

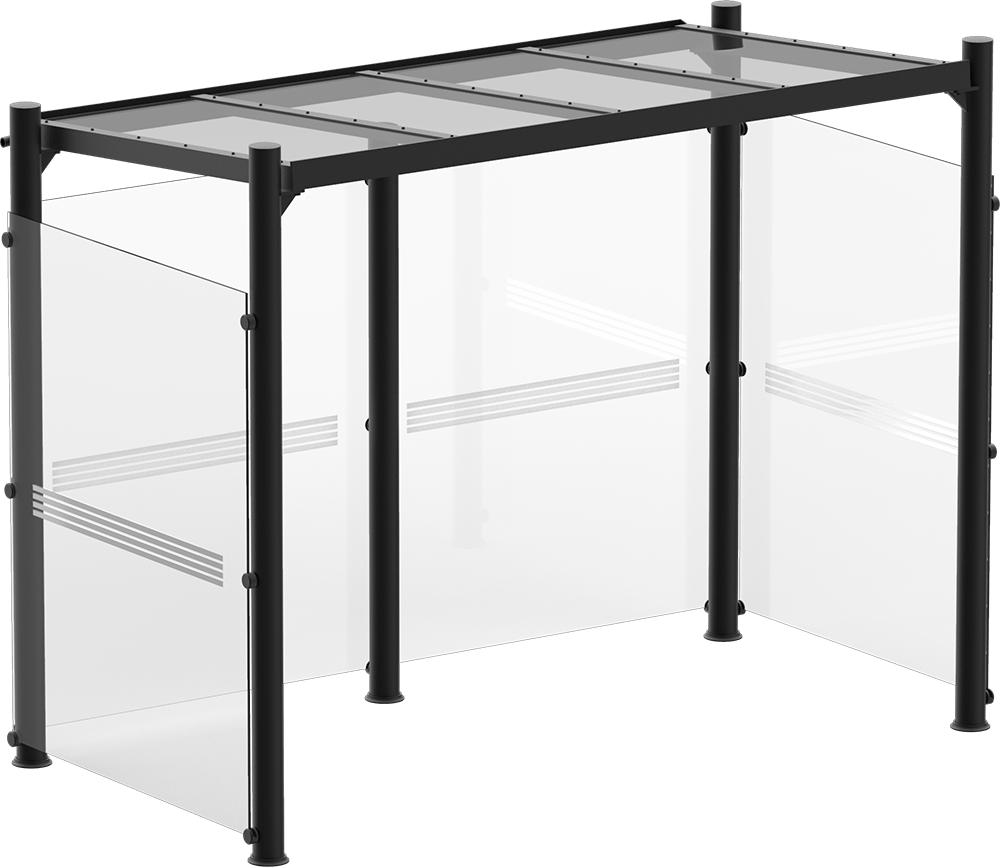

Monopitch roof
in steel-glass construction, steel posts with attached roof construction made of steel profiles

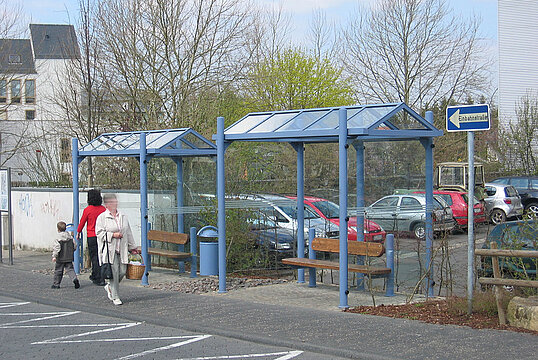

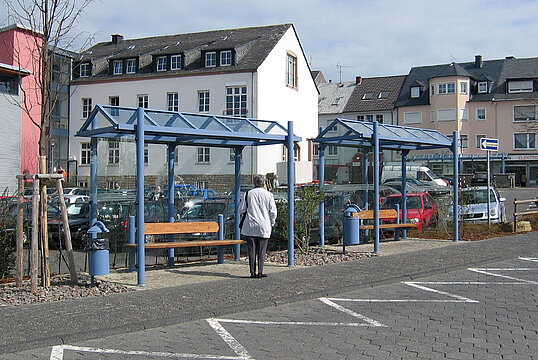

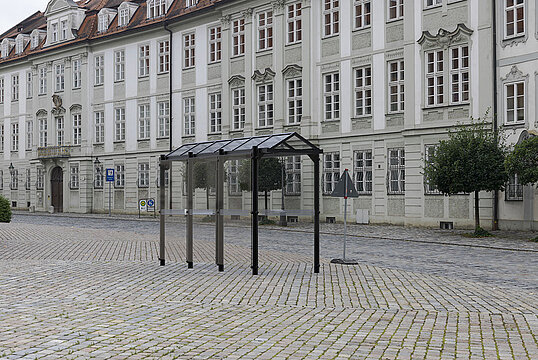

Gable roof
in steel-glass construction, steel posts with ground collars, roof construction suspended between the posts
roof covering made of laminated safety glass (VSG), side glazing made of toughened safety glass (ESG) with warning tape markings, with or without bench
Monopitch roof
standard grid: 3,00 m
pane grid rear wall: 1,50 m
clear height: 2,36 m
roof depth: 1,50 m
Gable roof
standard grid: 1,43 m
clearance height: 2,35 m
roof depth: 1,50 m
roof overhang: 0,35
Monopitch roof
in steel-glass construction, without side glazing, variable lengths, roof covering of corrugated aluminium, polycarbonate, acrylic glass or by arrangement
Gable roof (square, hexagonal, octagonal, ...)
Gable roof construction, roof cladding made of titanium zinc sheet, side glazing with alternative warning markings (e.g. birds, coat of arms, ...)
side cladding alternatively sheet metal (aluminium, perforated sheet metal, ...) or laminated panels (e.g. Trespa panels)
